TRIGGER TECH - Remington 700 Diamond Trigger

Our Diamond Two-Stage trigger for Remington 700 clones was developed with the same unmatched zero-creep break, tactile pull weight adjustment (on both stages), rugged design, and no compromise engineering. Our focus on safety led us to develop the first Remington 700 trigger with four points of safety. This is a new level of performance and safety for those who prefer some movement before the wall.

• Adjustable pull weight
• Available with pro curved or flat trigger lever

Our focus on safety led us to develop the first Remington 700 trigger with four points of safety. This is a new level of performance and safety for those who prefer some movement before the wall.

1. Ticker Blocker – prevents the ticker from moving while on safe.
2. Sear Blocker – prevents the sear from dropping while on safe.
3. First-Stage Lockout – the tumbler locks out the first stage while on safe. The first-stage will not move while on safe, giving the shooter immediate confirmation that the safety is engaged.
4. First-Stage Safety – even when on fire the first-stage blocks the ticker until the first-stage is actuated.

Zero Creep Technology™, along with hardened 440C stainless steel internal components ensure corrosion resistance and an extended service life. As Zero Creep Technology™ does not rely on coating, polishing or lubricating the key engagement surfaces, trigger pulls will be more consistent from shot to shot and after thousands of shots more than you ever thought possible.

All pull weights and measurements are approximate. Pull weights of TriggerTech Triggers are directly impacted by firing pin spring weight. Overweight firing pin springs may cause pulls weights to vary above the advertised range

Trigger Control Details

Weapon Platform: Remington 700 Clone Actions

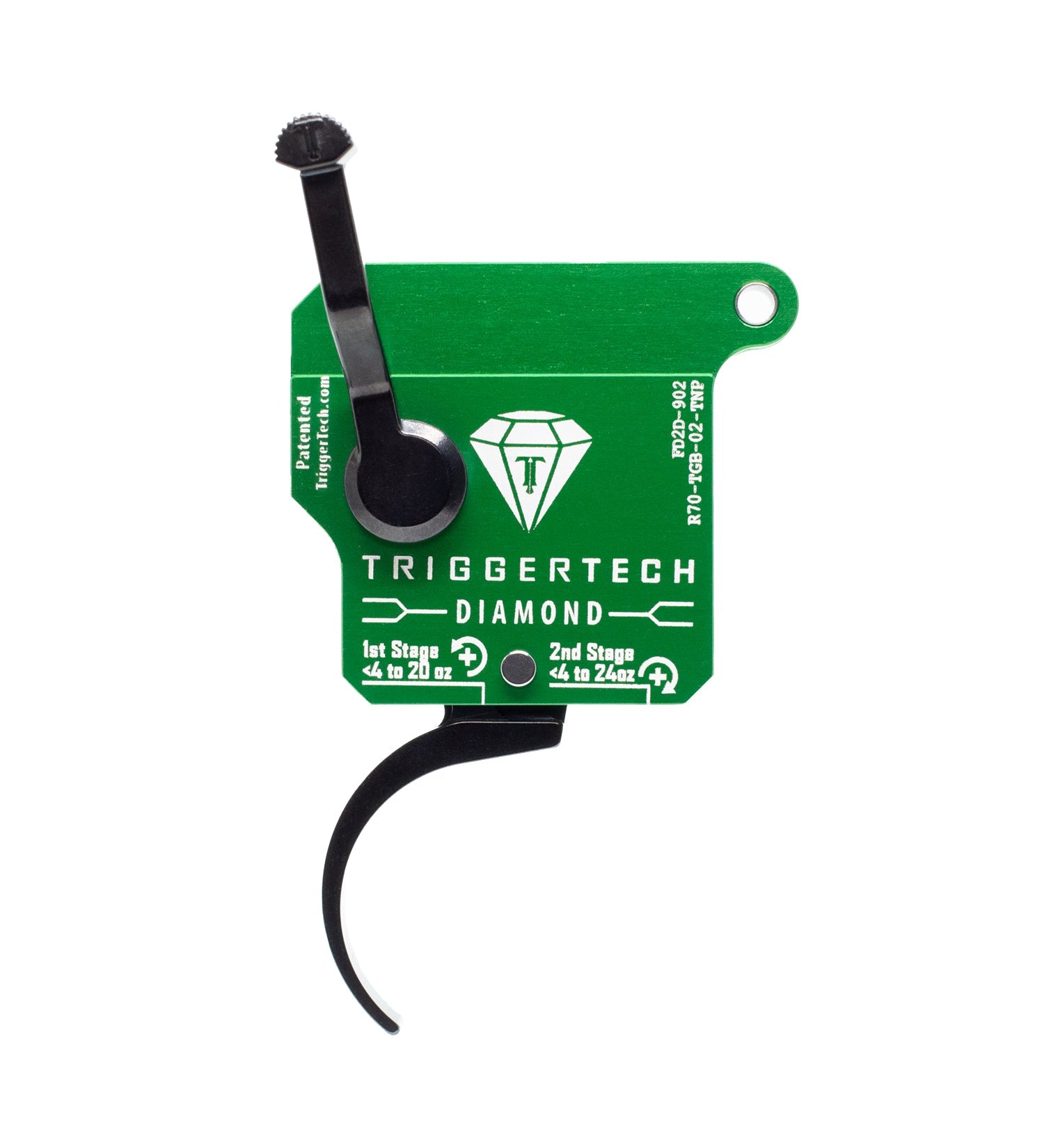

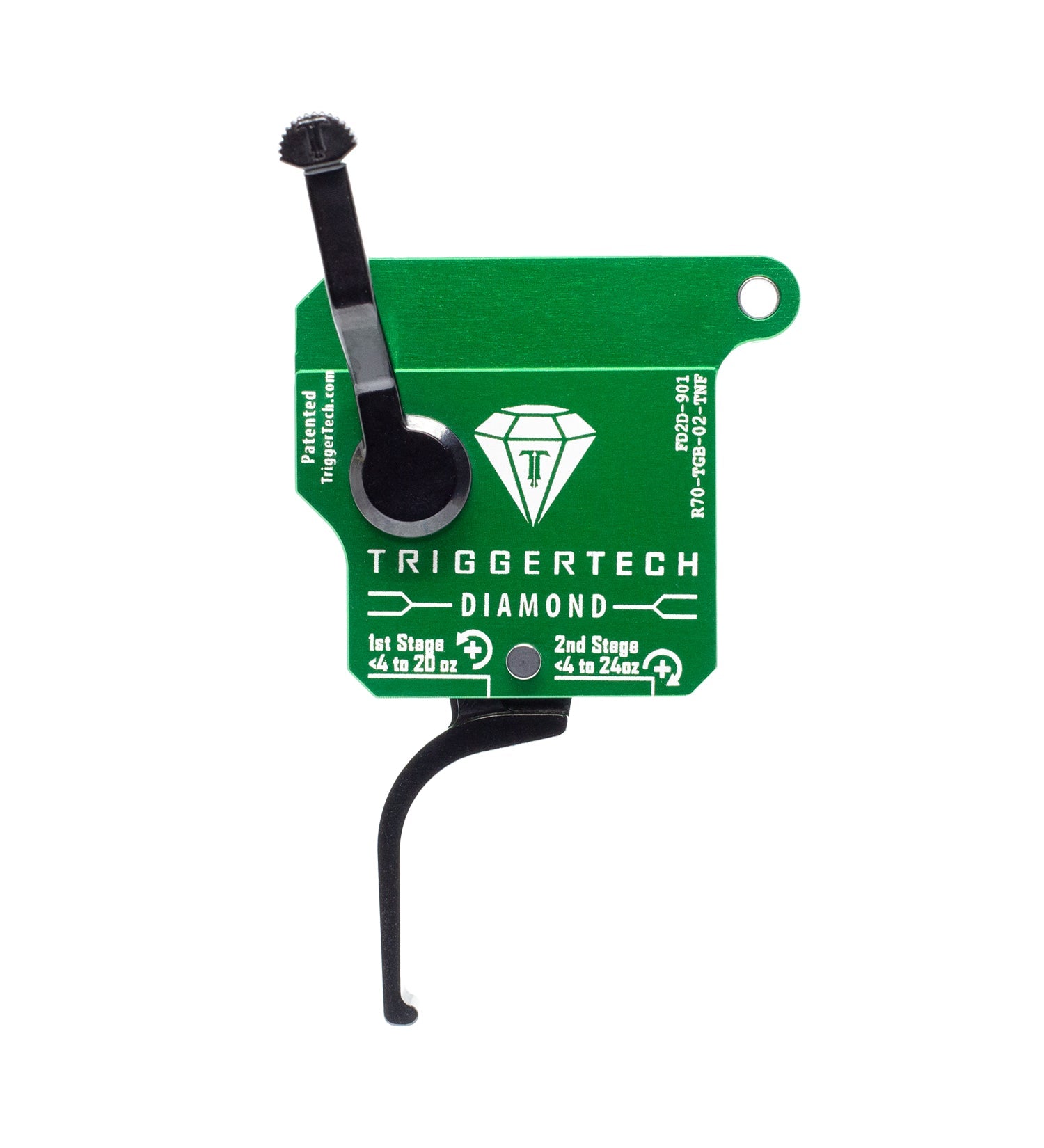

Trigger Lever Type: Pro Curved or Flat
Trigger Action: Two-Stage
FRT: Yes
TKR Technology: Yes
CLKR Technology: Yes
Overtravel: Sub .010"
Diamond Pull Weight:
1st stage: <4 to 20 oz
2nd stage: <4 to 24 oz
Bolt Release: No - cloned actions only
Safety: With (removable)
Hand: Right only
Warranty: Product lifetime
Housing: 7075 Aluminum (anodized)
Key Components: 440C Stainless Steel
PVD Black – PVD stands for Physical Vapour Deposition. It is a hard and durable coating that is applied to external stainless components to give them a clean black color.

Material Details

Housing: 7075 Aluminum (anodized)
Key Components: 440C Stainless Steel
PVD Black – PVD stands for Physical Vapour Deposition. It is a hard and durable coating that is applied to external stainless components to give them a clean black color.
